GAS HEATER = H01095 / H01100 / H01110 / H01119 / H01130
This equipment is using gas as fuel. It is suitable for smaller tank as heating equipment.
|
|
Function :
This equipment is using gas as fuel. It is suitable for smaller tank as heating equipment.
It's standerd component parts are below.
1.Hand Car : 1200*530*430(m/m).
2.Water Pump : 1/2H.P , 220V, 2Phase , RPM : 1800rpm.

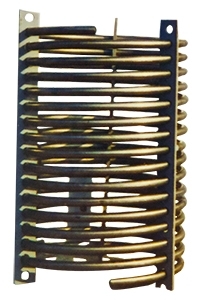

3.Heating Titanium Pipe: 0.6 inch (Bore), total length is 18M. It's formed to be one titanium circle. Specification circle : Dia x H = 430 * 700mm.
4.Pressure resistant hose : 60M/ROll.

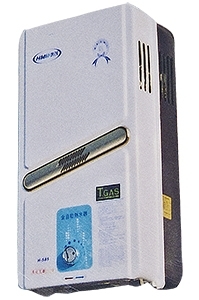

5.Gas Heating Set.
*The effort of gas heater is similar with 10KW Titanium Heater.
Specification :
Download
This equipment is using gas as fuel. It is suitable for smaller tank as heating equipment.
It's standerd component parts are below.
1.Hand Car : 1200*530*430(m/m).
2.Water Pump : 1/2H.P , 220V, 2Phase , RPM : 1800rpm.
3.Heating Titanium Pipe: 0.6 inch (Bore), total length is 18M. It's formed to be one titanium circle. Specification circle : Dia x H = 430 * 700mm.
4.Pressure resistant hose : 60M/ROll.
5.Gas Heating Set.
*The effort of gas heater is similar with 10KW Titanium Heater.
Specification :
| 產品編號 | 產品內容 |
| Product # | Product Content |
| H01095 | GAS HEATER 3/4" COIL TYPE BY: C.SET瓦斯熱水器圈鈦管全組 |
| H01100 | GAS HEATER 1" COIL TYPE BY: C.SET瓦斯熱水器圈鈦管 |
| H01110 | GAS HEATER 寶田牌1206型防風瓦斯熱水器 |
| H01119 | TITANIUM COIL 3/4"*18METER (60') / ROLL. |
| H01130 | T HIGH PRESS HOSE3/4*3B*200' / ROLL 高壓HOSE |
| If you are unable to find the items you need on this catalogue , Please contact us immediately , | |
| we will try our best to serve you.( 如果上述您有找不到的產品型號，請您與我們聯絡! ) | |
| Note : All data subject to alteration without notice. ( 上述產品規格如有變動，恕不另行通知。) | |
